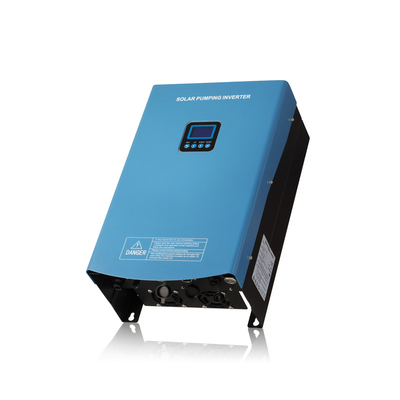

Model | HSPH7500H | ||
Solar Panel DC Input | Max Voc Voltage | 900V | |
Min Vmp Voltage | 400V | ||
Recommend Vmp Voltage | ≥500V (Only Solar), ≥560 V (Hybrid Power) | ||
Max MPPT Efficiency | 99% | ||
Max Input Current | 26A | ||
Number Of Strings | 2 | ||
Over load Power | 12.8kW | ||
Note | Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming | ||
Hybrid AC/Generator Input | Voltage | 3 Phase 380/400/440V | |
Max Input Current | 20 A | ||
Hybrid Mode | Automatic .AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery | ||
AC Output (For Pump,Rerator, Fan Parameters) | 10Max Adapted AC Pump Horse Power | 10HP | |
Max Adapted AC Pump Power | 7500W | ||
Drive Mode | 3Phase Variable Frequency Drive | ||
Max Output voltage | 380/400/440V | ||
Max Output frequency | 50 ~ 60 Hz (support program range 15 to 60Hz) | ||
Max Output Current | 28.5A | ||
Max Efficiency | 97% | ||
Water Level Sensor(Borehole / Tank) | Yes | ||
GPRS SMS Monitor&Controller | YES(Optional) | ||
Support Remote Monitoring & Control System (SPMCS) | YES(Optional) | ||
Display | LCD display | ||
Waterproof | IP65 | ||
Noise | < 50dB | ||
Cooling Method | Force Cooling by Fan (IP68) | ||
Operating Enviornment | Operating Environment Temperature | -10 to 60℃, Above 60℃ need to derate load | |
Max Humidity | 95%RH | ||
Using Altitude | < 3000m, Above 3000m need to derate load | ||
Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc | ||
Package | Size | 550*350*285 MM | |
Weight | 15KG | ||
