The EPP Integrated Single Pipe Water Heater Controller SR11L-SR288 (SR961S Substitute) Workstation For Solar Heating Systems

2 Sets
MOQ
$245.00(2 - 4 Sets) $235.00(5 - 9 Sets) $225.00(>=10 Sets)
preço
The EPP Integrated Single Pipe Water Heater Controller SR11L-SR288 (SR961S Substitute) Workstation For Solar Heating Systems
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: SR11L-SR288
Type: MPPT
Application: Water Heater Controller
Work Time (h): 24 hours
Max PV Power: 2w
Max PV Voltage: 240v
Certificate: CE
Warranty: 1 year
Product name: solar workstation
Informação básica
Certificação: CE
Model Number: SR11L-SR288
Condições de Pagamento e Envio
Packaging Details: Solar Controllers are separately packed in one carton.
Supply Ability: 1000 Piece/Pieces per Year
Descrição de produto
Product Description

Overview

* New version SR11L-SR288 EPP solar workstation is used in a split pressurized solar water heater system.
* It can be combined with the SR288 controller.
* It combines flow control, heat cycle, exhaust, pressure control, temperature display, system injection/discharge and many otherfunctions into one.
* By connecting solar collectors and split pressurized water tanks, store solar energy in the water tank.It can monitor system temperature, pressure, flow, etc. at any time.The structure of the entire assembly is compact, easy to install and use, good insulation effect.

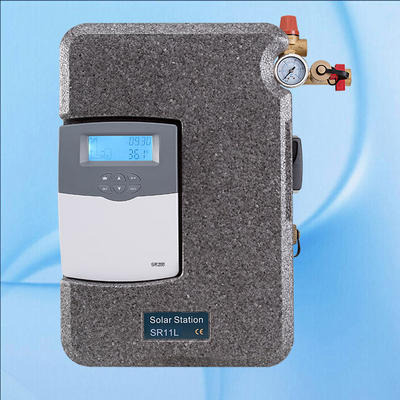

Product picture


Kits Parameter


Main functions


1.Flushing and filling the solar system

  • Flushing and filling connector is already integrated in the solar station, and we still installing a filling and drainage valve horizontally at the lowest point of the solar circuit for flushing system.

2.Flow check

  • The flow counter is used for measurement and display of flow rate 1-20L/M, in order to guarantee the flawless function of the measuring device the system must be flushed and free from foreign substances.

3.Manual / Automatic integrative air bleeder

  • After filling solar liquid and commissioning the system, air bleeder will release air automatically, but you can also release air manually.

4.Electrical connection and operation instruction of controller (see manual of controller)

  • The controller is already integrated in the station and ready to plug in, display and digital counter are already preinstalled at factory. For maintenance or service work, it needs to take out the controller from station. For further information on electrical connection of the controller, please see manual of controller (terminal layout).

Delivery scope


Technical Parameters

Technical Parameters


Size

Product：450*300*158mm
Package：500*400*200mm
SR11L:7KG

Optional controllers for pump station

* SR11L can be used with SR288 and other controllers.SR288 solar water heater intelligent controller is uesd for split pressure solar water heater.
* Developed with the latest high-performance microcontroller from NXP, the Netherlands,thereby achieving intelligent control.
* All devices use industrial grade standards,which can operate freely in cold, high temperature and humid environments.
* Simultaneous use of the clock chip for precise timing control.
* SR11L is LCD liquid crystal display, beautiful appearance, stable and reliable performance, easy installation, become the most ideal accessory product for solar water heaters.

SR288 controller


Product Installation

SR11L installation diagram


SR11L installation manual download:

Operation Instruction SR11L
