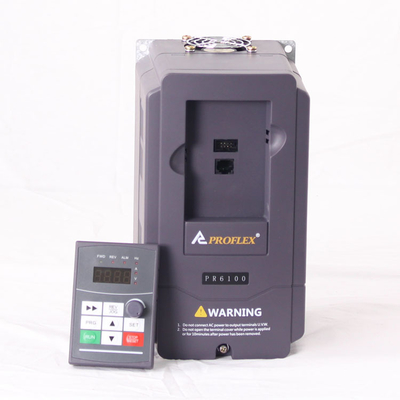

Place of Origin | China |
Brand Name | PROFLEX |
Model Number | PR6100-0004S2G-L |
Warranty | 18 months |
Type | AC-DC-AC |
Certification | CE ISO9001 |
Size | 82*163*85mm |
Customized | YES |
Control Mode | V/F,SVC |
Rated Power | 0.4KW |
Nominal Voltage | 220V |
power phase number | single phase 220v input,3 phase 220v output |
Overload | 150%- 60s,180%- 3s |
Color | Black |
Protection | IP20 |
Output Frequency | 0-600hz |
Control model | V/F,SVC |
Lead time | Within 7-10 days |
Shipment | Sea/air |
Market | Worldwide |
Other service | OEM/ODM |
Item | Specifications | ||
Input | Rated voltage and frequency | Single-phase 220V ; Three-phase 220V ; Three-phase 380V; 50Hz / 60Hz | |
Variable allowable value | Voltage: -20% ~ 20%; Voltage unbalance: <3% ; Frequency:±5% | ||
Output | Rated voltage | 0~200V /0~380V | |
Frequency range | 0Hz~400Hz | ||
Overload capability | 150% for 1 min, 180% for 1s, 200% instant protection | ||
Main | Modulation mode | Space voltage vector PWM control ; | |
Control mode | Sensorless vector control (SVC) | ||
Frequency accuracy | Digital setting: Max frequency ×±0. 01%; Analog setting: Max frequency ×±0. 2% | ||
Frequency resolution | Digital setting: 0.01Hz ; Analog setting: Max frequency ×0.1% | ||
Starting Frequency | 0.0Hz~10.00 Hz | ||
Torque rise | Auto torque rise, manual torque rise 1%~30.0%(valid for V/F) | ||
V/F curve | Three ways：Linear V/F curve, square V/F curve, user self-defining V/F curve | ||
Acceleration/deceleration | Optional time unit (Min/s), the longest: 3600s (settable in the range of 0.1~3600s). | ||
curve | |||
DC braking | Be optional during both starting and stopping, the operating frequency: 0~20Hz, | ||
operating time: settable within 0~30s | |||
Jogging | Jogging frequency range: 0.1~50.00Hz,jogging acceleration and deceleration time: 0.1~3600s. | ||
Built-in PID | It is convenient for forming closed loop control system,applicable for course control like | ||
pressure and flow, etc. | |||
Multi-speed operating | Realize multi-speed running by built-in PLC or control terminal. | ||
Weaving wobble | Can get wobble frequency of adjustable central frequency | ||
Frequency | |||
Auto voltage adjustment | When main voltage changes,the output voltage may be kept constant by adjusting | ||
PWM output (AVR function). | |||
Auto energy-saving running | According to load condition,V/F curve can be optimized automatically to get the aim of | ||
energy-saving running. | |||
Auto current limiting | Limit in-service current automatically, so as to avoid tripping for fault caused by frequent over current. | ||
Sensorless | Torsion characteristic | 150% output of torque at 1Hz, rev accuracy: 0.1% | |
Motor parameters | Reading the parameters from motor when completely stop in order to achieve optimal | ||
automatic read | controlling effect. | ||
Running | Running command passage | Setting of operating manual; setting of control terminal; setting of serial port; switching by three ways. | |
Frequency setting | Setting of keyboard analog potentiometer; setting of keyboard ,▲，▼ keys; | ||
setting of functional code digits; setting of serial port, setting of terminal UP/DOWN, | |||
setting of analog voltage, setting of analog current ; setting of impulse, setting of combination; | |||
switching at any time by kinds of setting ways. | |||
Switch input passage | Forward/reverse rotating command, 6-way programmable switching value input to set 30 functions. | ||
Analog input passage | 2-way analog signal input, 0~20mA, 0~10V optional. | ||
Analog output passage | Analog signal output 0~10V,0~20mA to get output of physical quantity，like frequency and output frequency。 | ||
Switch output passage | 3-way programmable open collector output; 1-way relay output signal; can output different physical quantities. | ||
Operating | LED display | Display setting frequency, output voltage, and output current and so on. | |
Display external | Display output frequency, output current, and output voltage and so on. | ||
instrument | |||
Protection function | Over current protection, over voltage protection, under voltage protection,over heat protection, over load protection. | ||
Option | Braking unit, remote operating panel, remote cable, soleplate of keyboard. | ||
Environment | Service location | Indoors, not suffer from sun, dust, corrosive gas, oil fog, and steam and so on. | |
Altitude | Shorter than 1000m (derating at higher than 1000m) | ||
Environment | -10°C ~ +40°C | ||
temperature | |||
Humidity | Less than 90%RH, no condensation | ||
Vibration | Less than 5.9m/s²(0.6M) | ||
Storage temperature | -20°C ~ +60°C | ||
Structure | Protection class | IP20 (In service state or keyboard state.) | |
Cooling way | Air-blast cooling | ||
Installation Way | Wall-hanging, Cabinet | ||
