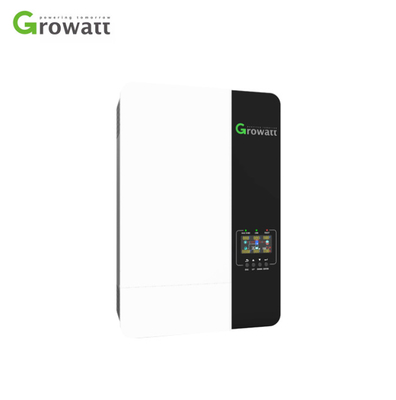

Growatt 5KW 5KVA AC220V PV450V SPF 5000ES 5000W 3500W 60A/80A MPPT Solar Charge Controller Off Grid Solar Inverter In Stock 485x330x135mm

1 Piece
MOQ
Growatt 5KW 5KVA AC220V PV450V SPF 5000ES 5000W 3500W 60A/80A MPPT Solar Charge Controller Off Grid Solar Inverter In Stock 485x330x135mm
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: Growatt spf 5000ES
Input Voltage: 48VDC/230VAC
Output Voltage: 230VAC±5%
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 485x330x135mm
Type: DC/AC Inverters, SPF5000 ES
Inverter Efficiency: 93%
Certificate: ce
Warranty: 5 Year
Weight: 13.5KG
Battery voltage: 48VDC
RATED POWER: 5000VA/ 5000W
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
Efficiency (Peak): 93%
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Maximum PV Array Power: 5500W
MPPT Range @ Operating Voltage: 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Charge Current: 80A
Informação básica
Certificação: ce
Model Number: Growatt spf 5000ES
Condições de Pagamento e Envio
Packaging Details: Standard carton package
Descrição de produto
Product Description
Specification
SPF5000ES
Battery voltage
48VDC
INVERTER OUTPUT
RATED POWER
5000VA/ 5000W
Parallel Capability
Yes, 6 units
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR CHARGER
Maximum PV Array Power
5500W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage
450VDC
Maximum Solar Charge Current
100A
Maximum Efficiency
97%
AC CHARGER
Charge Current
80A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
PHYSICAL
Dimension (D/W/H) in mm
485/330/135
Net Weight (kgs)
13
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
‘-15°C - 60°C

Certificate

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
