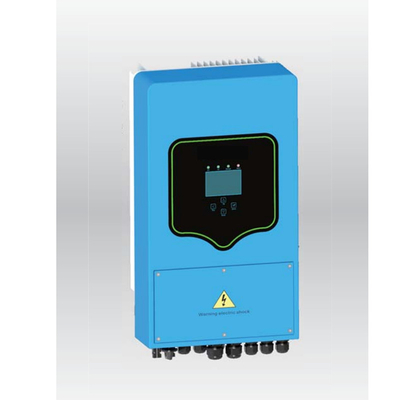

Mars Rock 3600W 100V-500V DC To AC 230V 220V 240V Single Phase 2 MPPT On Grid Hybrid Solar PV Inverter Offgrid 580*330*217mm

10.0 Pieces
MOQ
Mars Rock 3600W 100V-500V DC To AC 230V 220V 240V Single Phase 2 MPPT On Grid Hybrid Solar PV Inverter Offgrid 580*330*217mm
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: 3.6K-EU
Input Voltage: 370V(100V~500V)
Output Voltage: 220/230/240Vac(single phase)
Output Current: 15.7A
Output Frequency: 50/60Hz;
Output Type: Single
Size: 580*330*217mm
Type: DC/AC Inverters
Inverter Efficiency: 97.60%
Certificate: VDE 0126,AS4777,NRS2017,G98,G99, IEC61683
Weight: 20.5KG
Product Name: 2 MPPT On Grid Hybrid Solar Inverter PV Hybrid Inverter Offgrid
Battery Type: Lead-acid or Li-lon
Max. Charging Current (A): 90A
Max. PV DC Input Power (W): 4680W
PV Input Voltage (V): 370V(100V~500V)
Rated AC output and UPS power (W): 3600W
Output frequency and voltage: 50/60Hz; 220/230/240Vac(single phase)
Grid Type: Single Phase
MPPT Efficiency: 99.90%
Communication with BMS: RS485; CAN
Informação básica
Certificação: VDE 0126,AS4777,NRS2017,G98,G99, IEC61683
Model Number: 3.6K-EU
Condições de Pagamento e Envio
Packaging Details: The product is packaged in carton, filled with foam and protected by waterproof film. Our packing is not only seaworthy,but also attractive and provides consumer's convenience.
Supply Ability: 30000 Piece/Pieces per Month
Descrição de produto
Product Description

Product Introduction.

This is a multifunctional inverter,combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Product Overview.
1: Inverter Indicators
2: LCD display
3: Function Buttons
4: DC Switch
5: Power on/off button
6: Battery input connectors
7: Function Port
8: PV input with two MPPT
9: Generator input
10: Load
11: Grid
12: RS 485 Port
13: CAN Port
13: Parallel port

Product Features.

* -220V Single phase Pure sine wave inverter.
* - Self-consumption and feed-in to the grid.
* - Auto restart while AC is recovering.
* - Programmable supply priority for battery or grid.
* - Programmable multiple operation modes:On grid,off grid and UPS.
* - Configurable battery charging current/voltage based on applications by LCD setting.
* - Configurable AC/Solar/Generator Charger priority by LCD setting.
* - Compatible with mains voltage or generator power.
* - Overload/over temperature/short circuit protection.
* - Smart battery charger design for optimized battery performance
* - With limit function,prevent excess power overflow to the grid.
* - Supporting WIFI monitoring and build-in 2 strings of MPP trackers
* -Smart settable three stages MPPT charging for optimized battery performance.
* -Time of use function.
* -Smart Load Function.
* -Parallel function On-Grid&Off-Grid.
Basic System Architecture.
The following illustration shows basic application of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your
requirements.
This inverter can power all kinds of appliances in home or office environment, including motor
type appliances such as refrigerator and air conditioner.

Wiring System for Inverter.

Installation Instructions
1. Mounting the inverter.
Inverter should vertically installed, as shown，installation procedure show below:
1. Position the bolts on the appropriate wall according to the bolt positions on the mounting shelves and mark the holes. On the brick wall, the installation must be suitable for the expansion bolt installation.

2.Ensure that the position of the installation holes on the wall (A, B, C, D) are the same position of the install plate, and the mounting level is guaranteed.

3. Hang the inverter to the top of the mounting rack and then use the M4 screw in the accessory to lock E and F to ensure that the inverter does not move.
2. Battery connection.
Please follow below steps to implement battery connection:
1. Please choose a suitable battery cable with correct connector which can well fit into the battery terminals. 2. Use a suitable screwdriver to unscrew the bolts and fit the battery connectors in,then fasten the bolt by the screwdriver,make sure the bolts are tightened with torque of
2. Nm in clockwise direction,make sure polarity at both the battery and inverter is correctly connected.
3. In case of children touch or insects go into the inverter,Please make sure the inverter connector is fasten to waterproof position by twist it clockwise.
If you want to know more about the detail of installation steps, welcome to contact me for the electronic user maunal.
Product Parameters
Technical Data
3.6K-EU
5K-EU
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
 40V-60V
Max. Charging Current (A)
90A
125A
Max. Discharging Current (A)
90A
125A
Charging curve
3 Stages/equalization
External temperature sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
4680W
 6500W
PV Input Voltage (V)
370V(100V~500V)
MPPT Range (V)
125~425V
Start-up Voltage (V)
125V
Max. Input Current (A)
11A+11A
No. of MPP Trackers
2
No. of Strings per MPP Tracker
1/1
AC Output Data
Rated AC output and UPS power (W)
3600W
 5000W
Peak power(off grid)
2 times of rated power, 10 S
AC Output Rated Current(A)
15.7A
21.7A
Output frequency and voltage
50/60Hz; 220/230/240Vac(single phase)
Grid Type
Single Phase
Output frequency and voltage
THD<3%(Linear load) <1.5%
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
99.90%
Protection
PV Arc Faul t detection
Integrated
PV input lightning protection
Integrated
Anti-islanding Protection
Integrated
PV String Input Reverse Polarity Protection
Integrated
Insulation Resistor Detection
Integrated
Residual Current Monitoring Unit
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection
Integrated
Output Over Voltage Protection
Integrated
Certifications and Standards
Grid Regulation
VDE-ARN 4105,VDE 0126,AS4777,NRS2017,G98,G99,EN50438
Safety Regulation
IEC62109-1,IEC62109-2
EMC
EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (°C)
-25~60℃, >45℃ Derating
Cooling
Fan
Noise (dB)
<30
Communication with BMS
RS485; CAN
Weight (kg)
20.5KG
Size (Width*Height*Depth mm)
580*330*217mm
Protection Degree
IP65
Installation style
Wall-mounted
How to use?

1. OPERATION--Power ON/OFF

Once the unit has been properly installed and the batteries are connected well,simply press On/Off button(located on the left side of the case) to turn on the unit.When system without battery connected,but connect with either PV or grid,and ON/OFF button is switched off,LCD will still light up(Display will show OFF),In this condition,when switch on ON/OFF button and select NO battery,system can still working.

2. Operation and Display Panel.

The operation and display panel,shown in below chart,is on the front panel of the inverter.It includes four indicators,four function keys and a LCD display,indicating the operating status and input/output power information.
LED Indicator
Messages
DC
Green led solid light
PV Connection norma
AC
Green led solid light
Grid Connection normal
Normal
Green led solid light
Inverter operating normal
Alarm
Red led solid light
Malfunction or warning
Function Key
Description
Esc
To exit setting mode
Up
To go to previous selection
Down
To go to next selection
Enter
To confirm the selection

3. LCD Display Icons.

The LCD is touchscreen,below screen shows the overall information of the inverter.
1.The icon in the center of the home screen indicates that the system is Normal operation. If it turns into “comm./F01~F64” ,it means the inverter has communication errors or other errors,the error message will display under this icon(F01-F64 errors,detail error info can be viewed in the System Alarms menu).
2.At the top of the screen is the time.
3.System Setup Icon,Press this set button,you can enter intothe system setup screen which including Basic Setup,Battery Setup,Grid Setup,System Work Mode,Generator port use, Advanced function and Li-Batt info.
4.The main screen showing the info including Solar,Grid,Load and Battery.Its also displaying the energy flow direction by arrow.When the power is approximate to high level,the color on the panels will changing from green to red so system info showing vividly on the main screen.
* PV power and Load power always keep positive.
* Grid power negative means sell to grid,positive means get from grid.
* Battery power negative means charge,positive means discharge.
